XREF Dialogue System

The Dialogue System is a tool for creating interactive conversations in your Meadow experiences. It allows you to create branching dialogues with multiple choices and responses, and create your own RPGs.

Your dialogue tree is constructed from a .tsv sheet with a list of lines of dialogue, each with a unique ID. You can add as many languages as you want, the system will automatically detect the system language and use the correct one. If the system language can’t be found, it will default to english.

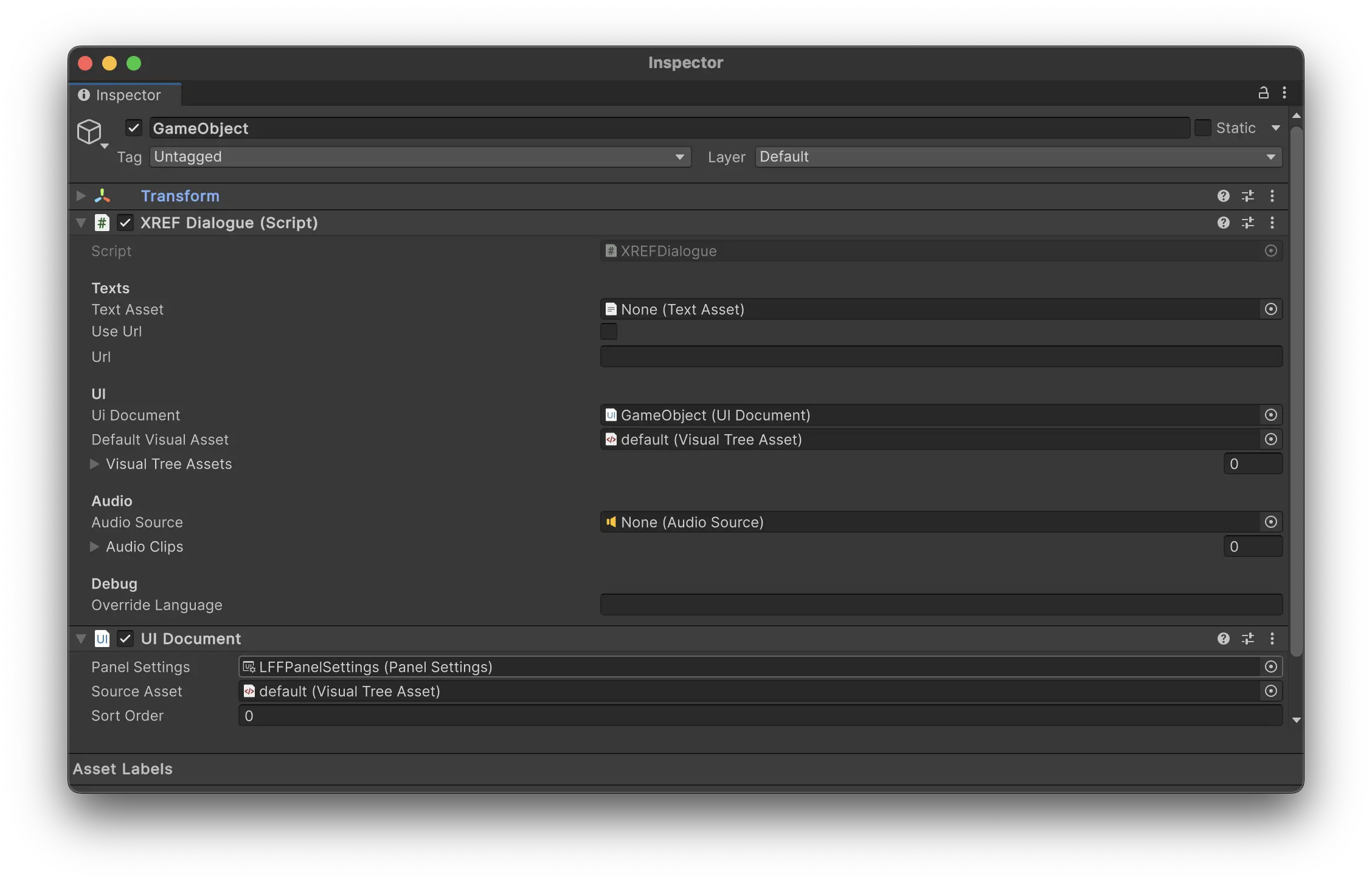

Dialogue System Properties:

Texts

UI

Audio

Debug

alt_text


Using the Dialogue System

  1. Add the XREFDialogue component to any game object in your prefab.
  2. Create a UIDocument and add it to the UIDocument field in the XREF.DialogueSystem component. This is the UI that will be used to display the dialogue. It can be added to any game object.
  3. Add a VisualAsset to the UIDocument. You can create one yourself, or use a default one located in packages/XREF.Experiencebuilder/Runtime/Dialogues/VisualTreeAssets/default. To create your own visual asset, see section “Create your own visual asset”.
  4. Add a Panel Settings to the UIDocument. You can create one yourself, or use a default one that you find when clicking the little circle next to the Panel Settings field.
  5. Add your dialogue tsv to the TextAsset field in the XREF.DialogueSystem component. You can also use a URL to fetch the dialogue from. See section “Use the Dialogue System with a URL” for more information.
  6. Create your dialogue tree in visual scripting. See section “Create your dialogue tree” for more information.


Create your dialogue tree

The XREF Dialogue System comes with a range of nodes for you to build dialogue trees. All nodes are found in XREF > Dialogues among the visual scripting nodes.

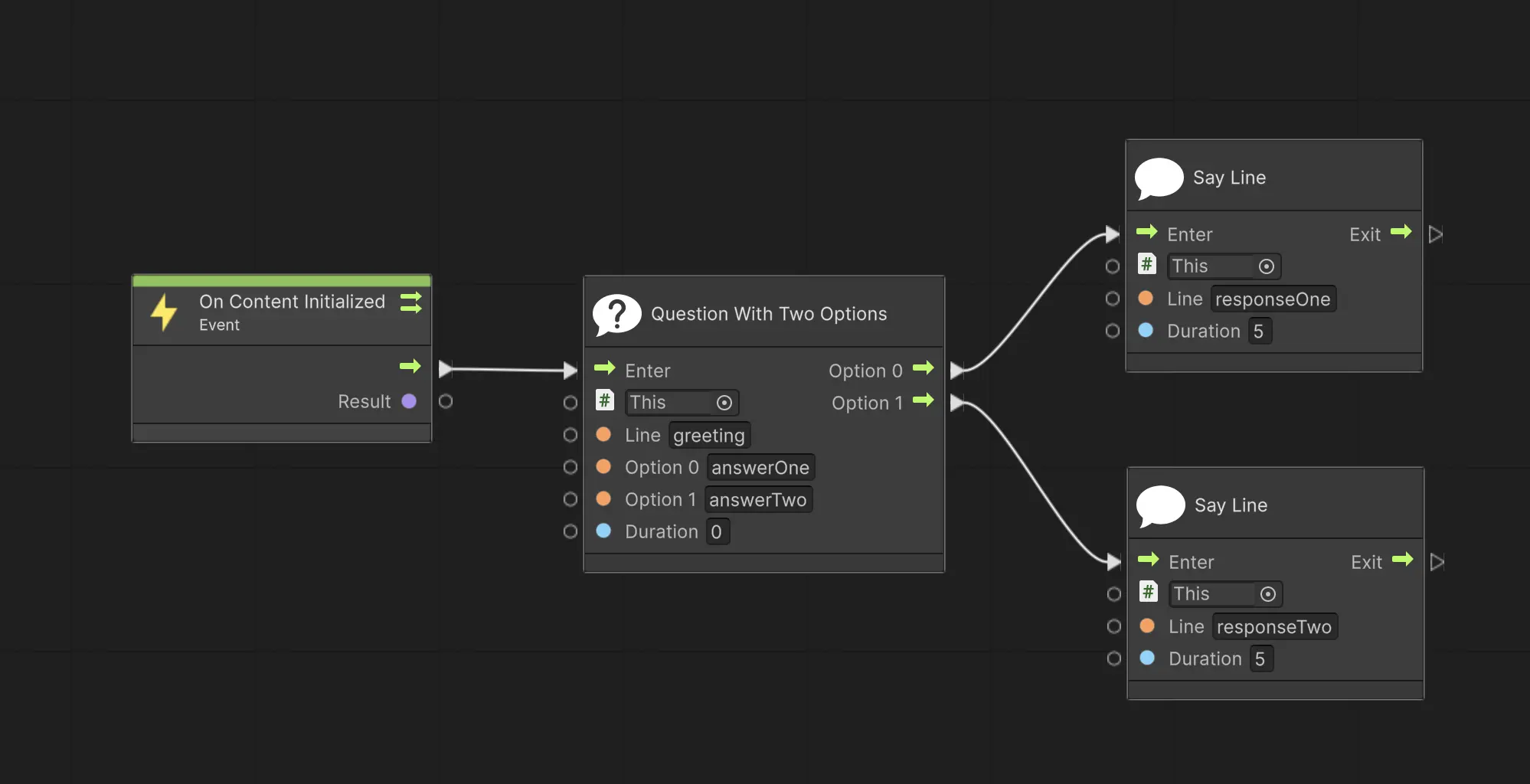

Here is an example of a basic dialogue tree:

alt_text

In this example, the dialogue starts with a Question with Two Optionsnode, the line that is said is greeting. The two options are answerOne and answerTwo. This is displayed to the user with one line with the text in greeting and then two buttons, each with the text in answerOne and answerTwo. Depending on which of these buttons the user press, the response is either responseOne or responseTwo.

In each node you can either specify an ID that takes the line from a .tsv file, or you can specify the line directly in the node.


List of nodes:

Say Line - Prints a line to the user.


Question with N Options - Asks a question to the user with N options. There is currently the choice of 1, 2 or 3 options.


Say Line Custom Property - Prints a line to the user on a specific Label element in your visual asset.


Set Visual Asset - Sets the visual asset used by your UIDocument.


Create a Dialogue tsv

In any text editor, create a .tsv file where the first row contains the languages you want to use. The first column should contain the ID of the line, and the following columns should contain the dialogue in the corresponding language.

Example:

ID English French Swedish Spanish
greeting Hi How are you Salut, comment ça va ? Hej, hur mår du? Hola, ¿cómo estás?
answerOne I’m good Je vais bien Jag mår bra Estoy bien
answerTwo I’m not so good Je ne vais pas très bien Jag mår inte så bra No estoy muy bien
responseOne Good to hear Content de l’entendre Gott att höra Bueno oír eso
responseTwo I’m sorry to hear that Désolé de l’entendre Tråkigt att höra Lo siento escuchar eso

You can use which languages you want. The system will automatically detect the system language and use the correct one. If the system language can’t be found, it will default to english.

It is good practice to use human readable ID’s for the lines. It will make it easier to keep track of the dialogue and you don’t need to cross reference everytime you forgot what line b1c9 was.

Please note: Unity does not recognize .tsv files as text assets by default. You need to change the file extension to e.g. .csv and then import it, to trick Unity into thinking it’s a text file. This doesn’t change the content of the file.


Use the Dialogue System with a TextAsset

  1. Save your .tsv file to disk.
  2. Due to a limitation in Unity, you need to change the file extension to .csv before importing it. This does not change the content of the file.
  3. Import the .csv file to your project. Unity will display it as a TextAsset. Place it in the folder of your experience to make sure it’s included in the asset bundle.
  4. Reference the TextAsset in the XREF.DialogueSystem component in the Text Asset field.


Use the Dialogue System with a URL

  1. Publish your tsv file to a publicly available URL.
  2. Reference the URL in the XREF.DialogueSystem component in the URL field. Toggle the Use URL bool to true.

This is the process for publishing your tsv if you are using Google Sheets:

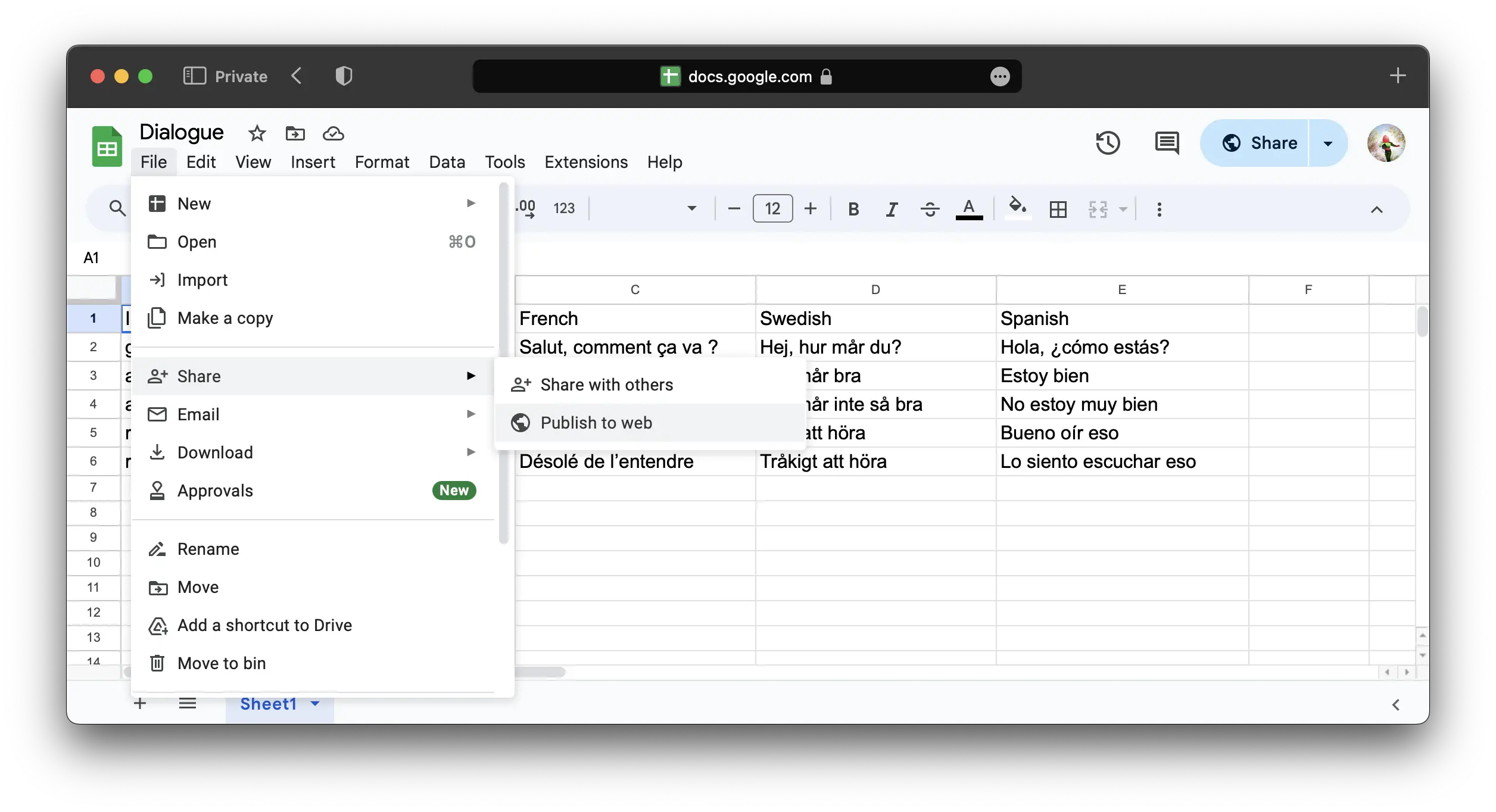

  1. Go to File > Share > Publish to the web.

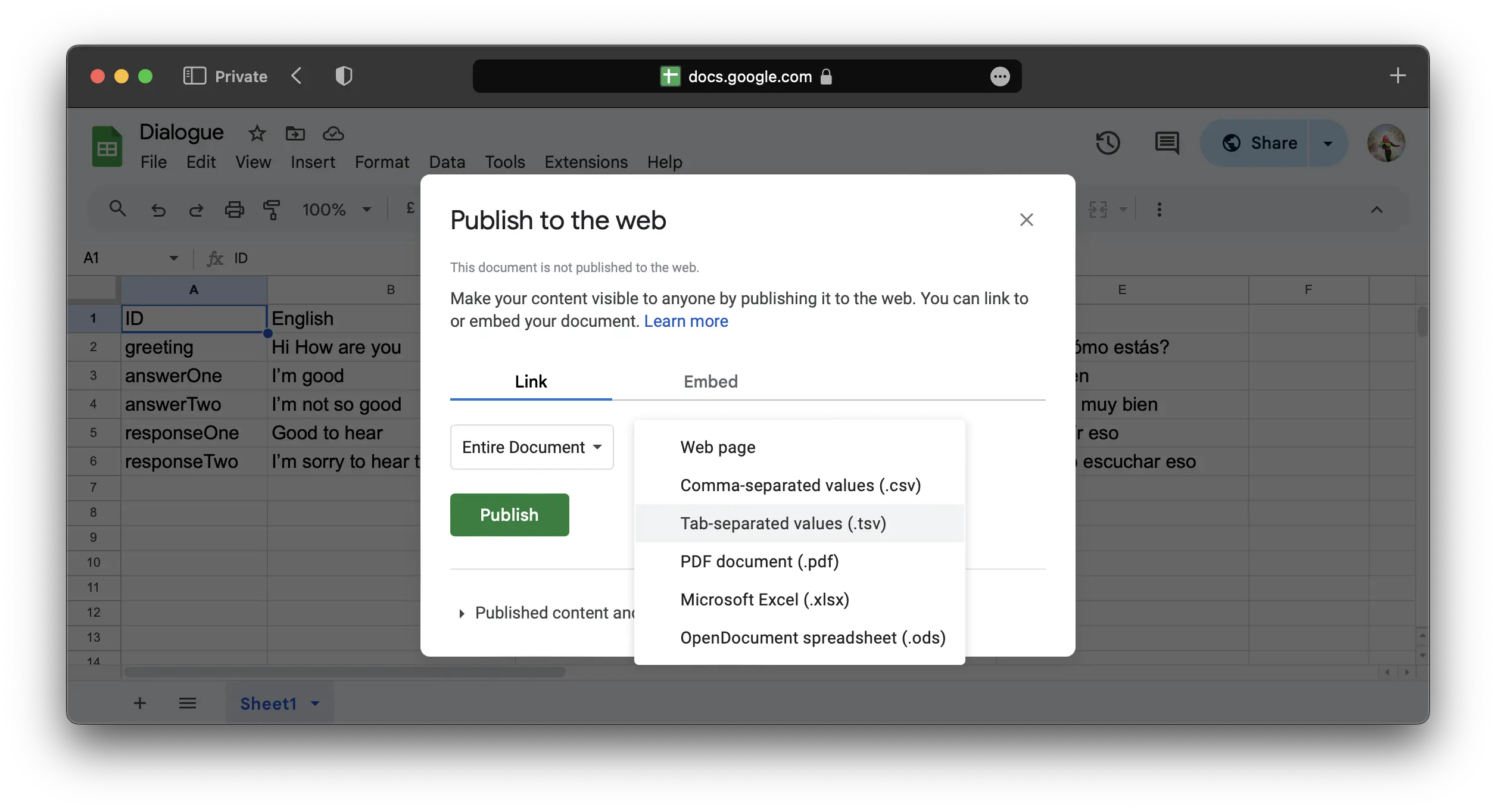

  2. Choose Entire Document and Tab-separated values (.tsv) as the format.
  3. Press Publish.
  4. Copy the link and use it in the URL field in the XREF.DialogueSystem component.
  5. Any changes you do to the Google Sheet is automatically reflected in your experience.

alt_text alt_text


Create your own visual asset

You can create and use your own visual asset to display the dialogue.

If you want to be able to use the Say Line you need to add a Label element to your visual asset with the name text. You can use another name, but then you need to specify the name in the Say Line Custom Property node.

If you want to be able to use the Question with N Options you need to add a Button element to your visual asset with the name optionX for each option, e.g. Option0, Option1, Option2.

You can also make a copy of the default visual asset and modify it to your liking.


Using Audio Clips

The dialogue system can play audio clips for each line of dialogue. You add audio clips to the Audio Clips list in the XREFDialogue component.

  1. Add an AudioSource somewhere in your prefab. Reference it in the XREFDialogue component in the Audio Source field. The AudioSource is the virtual speaker in space that will play the audio clips. If your dialogue will be spoken by a virtual character, place the audio on the character’s head or mouth to make use of Unity’s spatial audio.
  2. You don’t need to do anything with the AudioSource component, but if you want to utilize spatial audio you need to change Spatial Blend to 3D and set the Max Distance to a value that makes sense in your experience, often around 5 meters to make it noticable.
  3. Add your audio clips to the Audio Clips list in the XREFDialogue component.
  4. For each list item, add a string and an AudioClip. The string is the ID of the line in the .tsv file that you want to play the audio for. This system is in place so that you may easily change audio clips during testing, without having to rename them. You do not need to have one audio clip for every line in your dialogue, only the ones with a corresponding audio clip will be played.

Please note: Meadow currently does not support separate audio clips for different languages. Let us know if you need this feature, and we’ll add it.

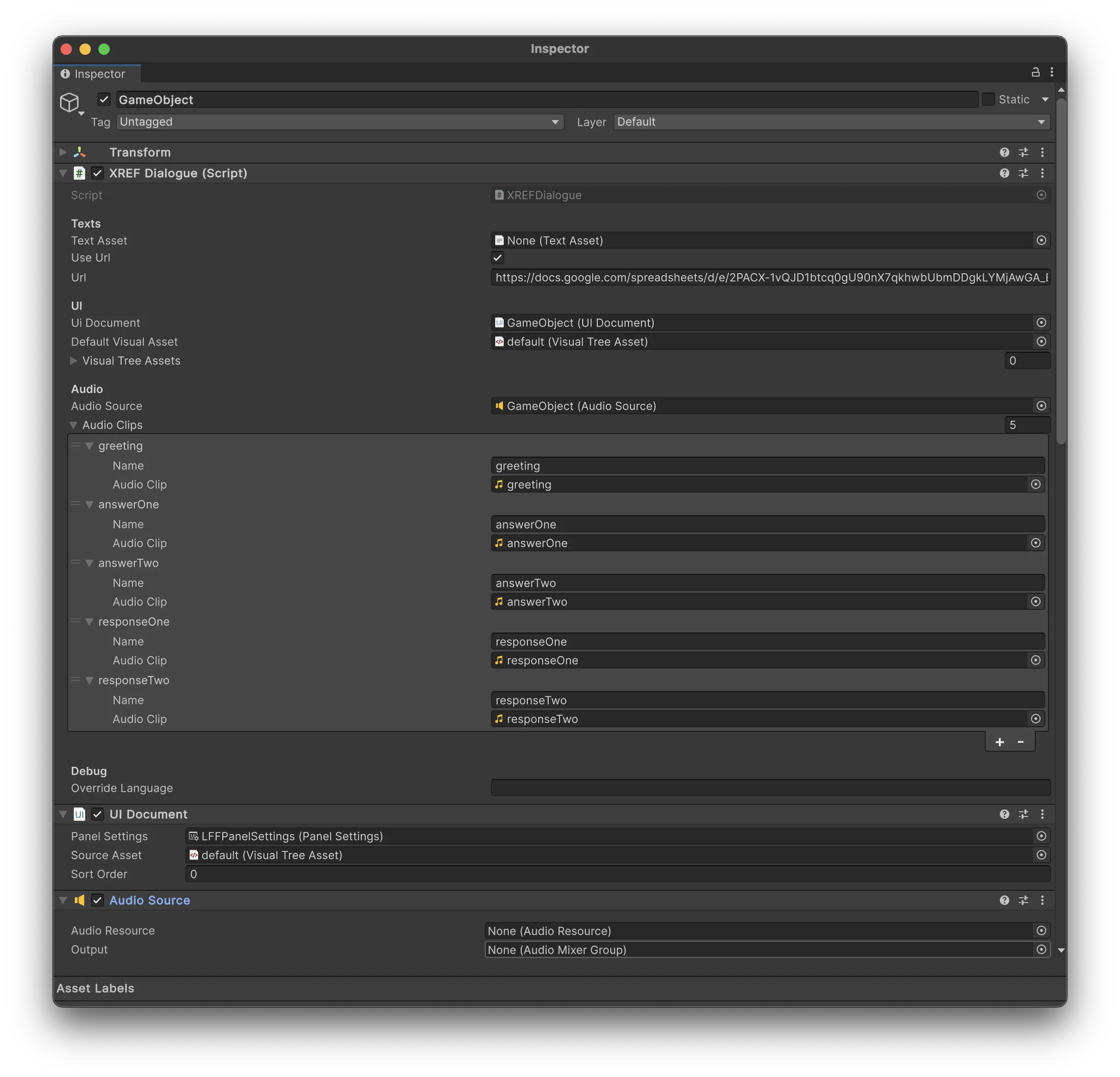

Example using the dialogue tree from the previous section:

alt_text
